Prismatic resonator


This page discusses the performance prismatic resonators (i.e., where the cross-sectional dimensions are constant in the principal direction of vibration).

Unless otherwise indicated —

  1. The resonators are cylindrical.
  2. The resonators do not contain a stud or stud hole.
  3. The primary vibration mode is axial. (For very large diameter resonators the radial amplitude may exceed the axial amplitude. None-the-less, the axial mode is the mode of investigation.)
  4. Amplitudes, strains, and stresses are determined along the resonator's axis centerline.
  5. Performance data have been determined by finite element analysis (FEA). (In some cases theoretical values have been used where these don't differ significantly from FEA values.)

Axial amplitude

The axial amplitude of a prismatic resonator is cosinusoidally distributed along the resonator's length from the free end —

\begin{align} \label{eq:10701a} u(x) &= U_p \cos \left( \frac{\pi}{\Gamma} \, x \right) \end{align}

where —

\( u \) = amplitude distribution
\( x \) = distance, starting from a free end (antinode)
\( U_p \) = maximum (peak) amplitude
\( \Gamma \) = half wavelength at the resonant frequency

The quantity in ( ) is in radians. The amplitude \( u(x) \) is maximum at the antinodes (the free end and every half wavelength (\( \Gamma \)) thereafter). \( u(x) \) is zero at the nodes (\( \Gamma/2 \) and every \( \Gamma \) thereafter). For a thin wire \( \Gamma \) is simply the thin-wire half wavelength \( \Gamma_{tw} \).

Equation \eqref{eq:10701a} applies regardless of whether the resonator is thin or fat. This is illustrated for the two 20 kHz resonators of figure 1 — a \( \phi \)10 mm which is reasonaby thin and a \( \phi \)140 mm which is decidedly fat. The amplitude data along each resonator's axis are graphed in figure 2. The data in the left panel show the amplitude distributions that correspond to the actual resonator lengths. The right panel shows the same data but where the X-axis has been normalized with respect to the half wavelengths of the two resonators — i.e., \( \large\frac{x}{\Gamma_{\phi 10}} \) and \( \large\frac{x}{\Gamma_{\phi 140}} \). The two curves in the right panel are nearly coincident showing that both the thin and fat resonators can be described by equation \eqref{eq:10701a}.

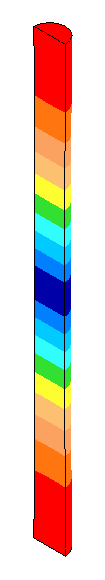

Axial amplitudes for 10 mm diameter 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
\( \phi \)10 mm resonator

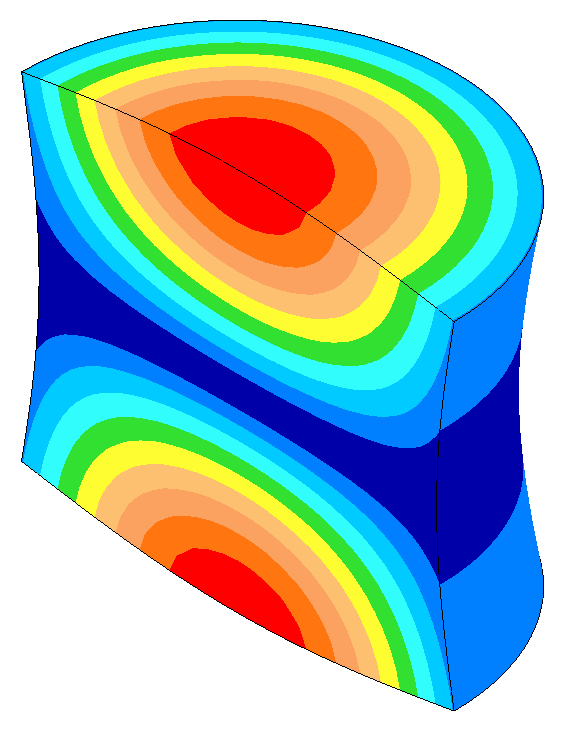

Axial amplitudes for 140 mm diameter 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
\( \phi \)140 mm resonator

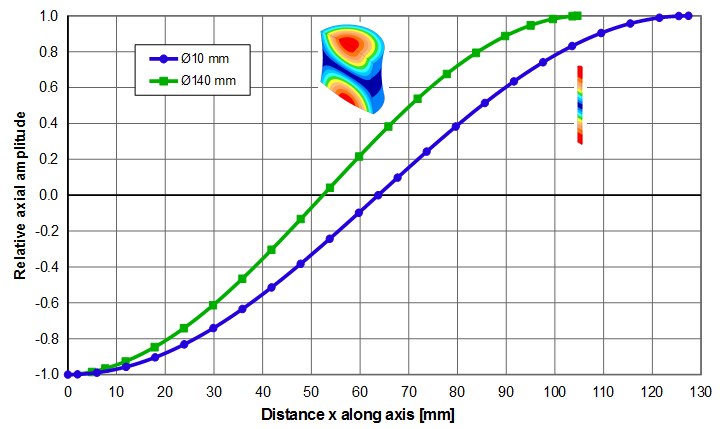

Figure 1. Axial amplitudes for 20 kHz resonators for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)
Graph - Relative axial amplitudes for 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33) - actual distance
Actual distance

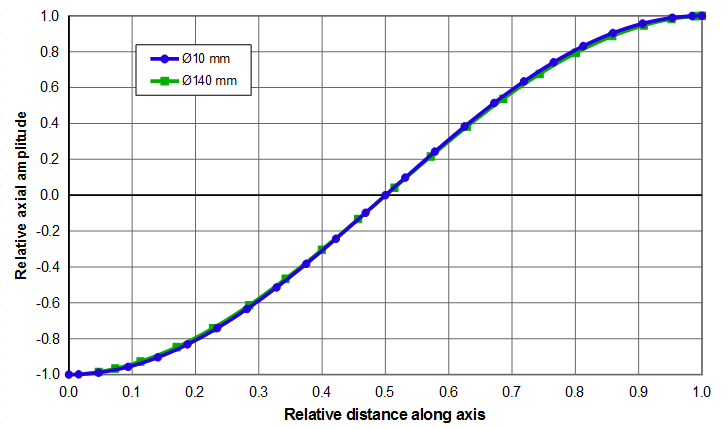

Graph - Relative axial amplitudes for 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33) - relative distance
Relative distance = \( \large\frac{x}{\Gamma} \)
Figure 2. Relative axial amplitudes for 20 kHz resonator for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

Axial strain and stress

A thin wire experiences strain only in the axial direction. Then the axial strain is the derivative (slope) of the amplitude curve —

\begin{align} \label{eq:10702a} {\epsilon}(x) &= \frac{du}{dx} \\[0.7em]%eqn_interline_spacing &= U_p \left( {\frac{\pi}{\Gamma_{tw}}} \right) \sin \left( {\frac{\pi}{\Gamma_{tw}}} \, x \right) \nonumber \end{align}

The strain \( {\epsilon}(x) \) is zero at the antinodes (the free end and every half wavelength (\( \Gamma_{tw} \)) thereafter). \( {\epsilon}(x) \) is maximum at the nodes (\( \Gamma_{tw}/2 \) and every \( \Gamma_{tw} \) thereafter).

\begin{align} \label{eq:10707a} {\epsilon}_{max} &= U_p \left( {\frac{\pi}{\Gamma_{tw}}} \right) \end{align}

Rather than expressing the above equations in terms of the half wavelength, they may be more conveniently expressed in terms of the frequency and wave speed where it is recognized that —

\begin{align} \label{eq:10703a} \Gamma_{tw} = \frac{c_{tw}}{2 \, f} \end{align}

where —

\( c_{tw} \) = Thin-wire wave speed = \( \sqrt{\frac{E}{\rho}} \)
\( f \) = frequency

Then equations \eqref{eq:10701a} through \eqref{eq:10707a} become —

\begin{align} \label{eq:10704a} u(x) &= U_p \cos \left( {\frac{2\pi \, f}{c_{tw}}} \, x \right) \end{align}

\begin{align} \label{eq:10705a} {\epsilon}(x) &= U_p \left( {\frac{2\pi \, f}{c_{tw}}} \right) \sin \left( {\frac{2\pi \, f}{c_{tw}}} \, x \right) \end{align}

\begin{align} \label{eq:10706a} {\epsilon}_{max} &= U_p \left( {\frac{2\pi \, f}{c_{tw}}} \right) \end{align}

Fat resonators

As discussed above, the amplitude along the resonator axis is cosinusoidal (equation \eqref{eq:10701a}), regardless of whether the resonator is thin or fat. However, the strain equation \eqref{eq:10702a} only applies when the strain acts in a single direction, which is true for thin resonators. Fat resonators will have higher net strain due to two effects —

  1. In addition to the axial motion, fat resonators also have lateral "breathing" motion due to Poisson coupling. This results in additional radial and circumferential (hoop) strains.
  2. Fat resonators have a shorter tuned length (i.e., \( \Gamma \lt \Gamma_{tw} \)) so a given amplitude will be contrained within a shorter length.

The net result of these two effects is shown in figures 3 and 4 for a 20 kHz resonator. The \( \phi \)10 mm resonator is reasonably thin and its strain can be predicted from equation \eqref{eq:10702a}. On the other hand the \( \phi \)140 mm resonator is substantially fat —

  1. Its half wavelength is 18% shorter than the thin resonator (105 mm versus 127 mm).
  2. Its peak strain is 36% higher than the thin resonator.
  3. The strains at the free end faces (antinodes) are not zero; instead, they are 6% of the strain at the node. This is because the free ends have substantial radial amplitude (5% of the face axial centerline amplitude).

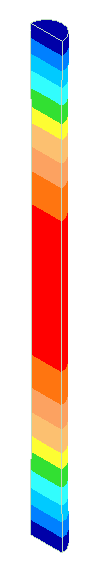

Strains for 10 mm diameter 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
\( \phi \)10 mm resonator

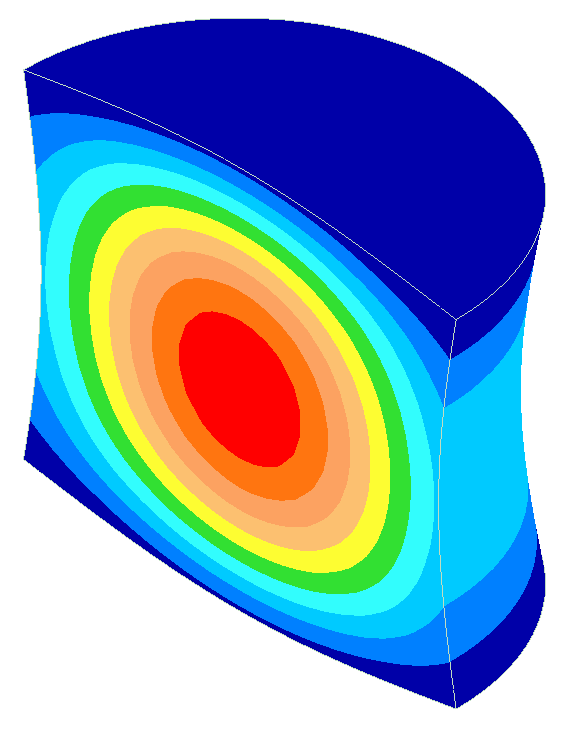

Strains for 140 mm diameter 20 kHz resonator for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
\( \phi \)140 mm resonator
Figure 3. Strains for 20 kHz resonators for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

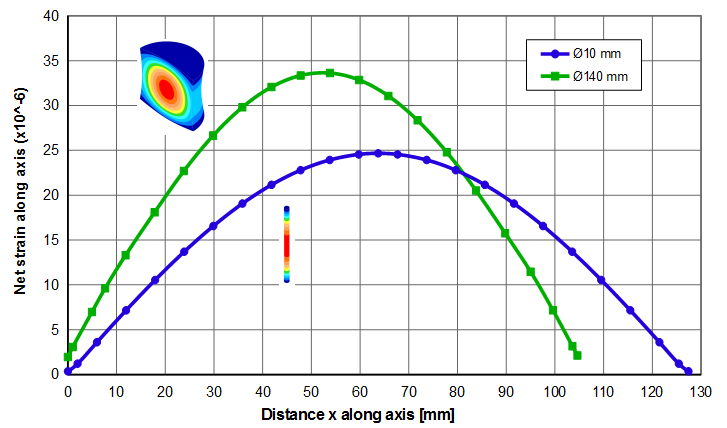

Graph - Net strain 20 kHz resonator at 1 micron_peak for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 4. Net strain for 20 kHz resonator at 1 micron_peak for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

Note: The net strains shown above are the von Mises strains. The von Mises stress can then be calculated as the product of Young's modulus \( E \) and the von Mises strain.

Tuning

The tuning of a prismatic resonator depends on the ratio of the resonator's diameter to its prismatic half wavelength.

Tuned length

The tuned length of a thin prismatic resonator is —

\begin{align} \label{eq:10710a} \Gamma_{tw} = \frac{c_{tw}}{2 \, f} \end{align}

where —

\( \Gamma_{tw} \) = thin-wire half-wavelength
\( c_{tw} \) = thin-wire wave speed
\( f \) = frequency

The thin-wire wave speed can be determined from the material properties —

\begin{align} \label{eq:10711a} c_{tw} &= \sqrt{\frac{E}{\rho}} \end{align}

where —

\( E \) = modulus of elasticity (Young's modulus)
\( \rho \) = density

As the lateral dimensions of the resonator increase (i.e., the resonator is no longer "thin"), the half-wavelength decreases below that of a thin wire. From a physical standpoint, when the resonator's diameter is larger than an infinitely thin wire then radial "breathing" occurs due to Poisson's coupling. This radial motion imparts additional kinetic energy which would cause the resonator's frequency to drop. In order to maintain the desired frequency the resonator's length must be reduced.

At larger diameters even more breathing occurs and the resonator must tune progressively shorter. At the largest possible diameter the resonator is reduced to a thin flat disk. Then the breathing is simply the fundamental radial resonance of the disk.

The actual tuned length at a finite diameter \( D \) can be determined by multiplying \( \Gamma_{tw} \) by a length factor \( K_L \).

\begin{align} \label{eq:10712a} \Gamma = K_L \,\, \Gamma_{tw} \end{align}

where —

\( \Gamma \) = half-wavelength at diameter \( D \)
\( \Gamma_{tw} \) = thin-wire half wavelength
\( K_L \) = tuned length factor

The tuned length factor can be determined from figures 5 or 6. (Figure 6 is a zoomed portion of figure 5 where the horizontal axis is limited to 1.1 which is a realistic upper limit for most axial resonators. Figure 6 also includes a range of Poisson's ratios that are typical of many acoustic materials. For clarity, the individual FEA data points are not shown.) The images in the figures show the relative sizes of the cylinders; the colors are representative of the axial amplitudes (parallel to the resonator's axis).

(Note: Two theoretical approximate length factors — the Rayleigh factor \( K_{L_R} \) and the Mori factor \( K_{L_M} \) — are discussed in Appendix A.)

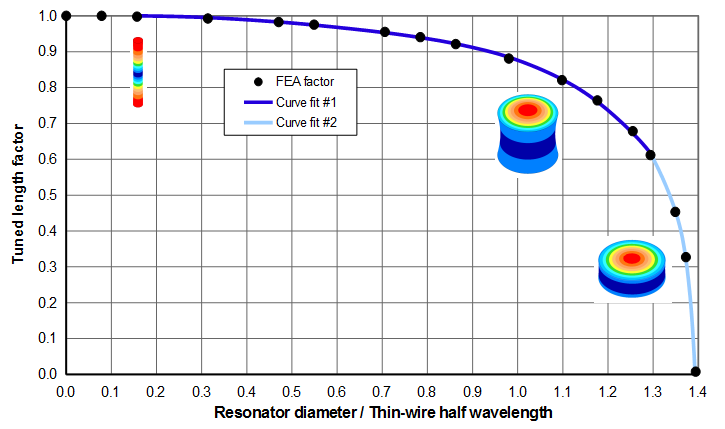

Graph - Tuned length factors for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 5. Tuned length factors for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

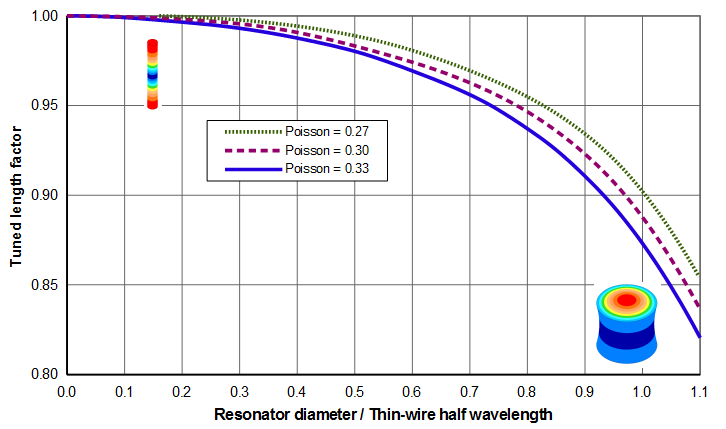

Graph - Tuned length factors for typical acoustic materials, various Poisson's ratios (thin-wire wave speed = 5100 m/sec)
Figure 6. Tuned length factors for typical acoustic materials
(\( c_{tw} \) = 5100 m/sec)

Figure 6 shows that the tuned length increases as Poisson's ratio decreases. In fact, if Poisson's ratio were zero there would be no Poisson coupling and the resonator would not breathe. Then the tuned length would be the same as a thin-wire, regardless of the resonator's diameter.

Example 1

Given — a 20 kHz \( \phi \)90 mm cylindrical resonator. The resonator material has a thin-wire wave speed \( c_{tw} \) of 5100 m/sec and a Poisson's ratio of 0.33.

Determine — the tuned half wavelength \( \Gamma \).

  1. \( \Gamma_{tw} \) = 127.5 mm (equation \eqref{eq:10710a})
  2. \( D/\Gamma_{tw} \) = 90.0/127.5 = 0.71
  3. \( K_L \) = 0.955 (from figure 6)
  4. \( \Gamma \) = 0.955 * 127.5 mm = 121.8 mm

Tuning rate

From Appendix B the tuning rate for a thin prismatic resonator is —

\begin{align} \label{eq:10715a} \varphi_{tw} &= -\frac{f}{n \, \Gamma_{tw}} \end{align}

where —

\( \varphi_{tw} \) = thin-wire tuning rate [Hz/mm]
\( f \) = current frequency [Hz]
\( \Gamma_{tw} \) = thin-wire half wavelength [mm]
\( n \) = number of half waves

Note that the tuning rate is always negative as indicated by the minus sign. However, the tuning rate is generally discussed as a positive (absolute) value.

As the lateral dimensions of the resonator increase (i.e., the resonator is no longer "thin"), the tuning rate decreases (i.e., more material must be removed in order to achieve a given frequency change). This can be accommodated by applying a tuning rate factor to equation \eqref{eq:10715a} —

\begin{align} \label{eq:10716a} \varphi &= K_T \, \varphi_{tw} \\[0.3em]%eqn_interline_spacing &= K_T \, \left( \frac{f}{L} \right) \nonumber \end{align}

Note that equations of this section only apply if the resonator is prismatic. They do not apply if the resonator has gain.

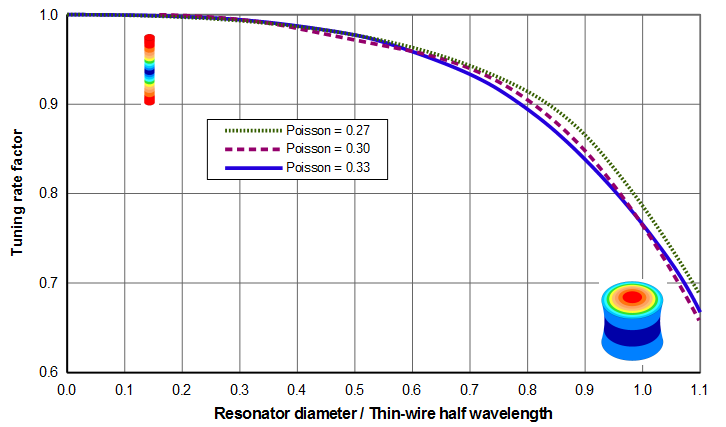

Graph - Tuning rate factors for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 7. Tuning rate factors for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)
Graph - Tuning rate factors for typical acoustic materials, various Poisson's ratios (thin-wire wave speed = 5100 m/sec)
Figure 8. Tuning rate factors for typical acoustic materials
(\( c_{tw} \) = 5100 m/sec)

As discussed above, a resonator tunes shorter as the lateral dimensions increase (i.e., as \( D/\Gamma_{tw} \) increases). It would seem that the tuning rate should then be higher for shorter resonators — i.e., that each unit of length change (in relation to the shortened resonator length) should be more effective in changing the frequency. For example, removing 1 mm from a 127 mm x \( \phi \)20 mm resonator reduces its length by 0.8% whereas removing 1 mm from a 105 mm x \( \phi \)140 mm resonator reduces its length by 1.0%; thus, logic would indicate that the 105 mm resonator should tune more quickly than the 127 mm resonator (assuming both have the same initial frequency).

However, this ignores the effect of the lateral vibration due to Poisson coupling. Thin resonators have relatively little lateral vibration so the kinetic energy is predominately due to longitudinal vibration. As the lateral dimensions increase the resonator's lateral vibration also increases along with a corresponding increase in the lateral kinetic energy. When the resonator is tuned from the face the lateral kinetic energy is relatively unaffected, particularly because this lateral kinetic energy is mainly stored in the nodal region. Thus, more material must be removed from the face of a "fat" resonator in order to change the overall kinetic energy by the same proportion as would be needed to change the kinetic energy of a thin resonator. (This logic that was originally used by Rayleigh for his tuned length correction.) Hence, "fat" resonators tune more slowly than thin resonators. For the above example, the tuning rate for the 127 mm x \( \phi \)20 mm resonator is 157 Hz/mm whereas the tuning rate for the 105 mm x \( \phi \)140 mm resonator is 100 Hz/mm (36% slower).

Interestingly, figure 8 shows that the tuning rate is relatively unaffected by Poisson's ratio when this ration is between 0.27 and 0.33. However, this will not be true as Poisson's ratio deviates significantly from this range. For example, if Poisson's ratio were zero then there would be no breathing and the tuning rate would just be that of a thin wire, regardless of the resonator's diameter.

Example 2

Given — a \( \phi \)90 mm x half-wave cylindrical resonator. The length is 124.8 mm for which the frequency is 19500 Hz. The resonator material has a thin-wire wave speed \( c_{tw} \) of 5100 m/sec and a Poisson's ratio of 0.33.

Determine — the tuning rate \( \varphi \) and expected final length.

  1. \( \Gamma_{tw} \) = 130.8 mm @ 19500 Hz (equation \eqref{eq:10710a})
  2. \( D/\Gamma_{tw} \) = 90.0 / 130.8 = 0.688
  3. \( K_T \) = 0.94 (from figure 8)
  4. \( f/\Gamma_{tw} \) = 19500 Hz / 130.8 mm = 149 Hz/mm (thin-wire tuning rate)
  5. \( \varphi \) = 0.94 * 149 Hz/mm = 140 Hz/mm

Effect of transducer

Adding a transducer will convert the stack from a half-wave system to a full-wave system and will affect the tuning rate. The exact effect can't be predicted; however, it will depend on the relative stored energy of the resonator compared to the transducer. If the resonator and transducer have similar energy storage then the tuning rate will be close to that of a full-wave prismatic resonator (e.g., \( n = 2 \) in equation \eqref{eq:10716a}). However, if the resonator has relatively high energy storage (e.g., a large diameter steel resonator) then the transducer will have little effect and the tuning rate will be only somewhat less than the half-wave resonator alone (equation \eqref{eq:10716a} with \( n = 1 \) or figures 7 or 8).

Relative amplitudes

As a resonator expands and contracts axially, Poisson coupling causes the resonator to breathe laterally. Such breathing is not uniform but instead predominates where the strain is highest (i.e., at the node). This results in a nonuniform axial amplitude distribution across the resonator's face. See further explanation.

Face axial amplitudes

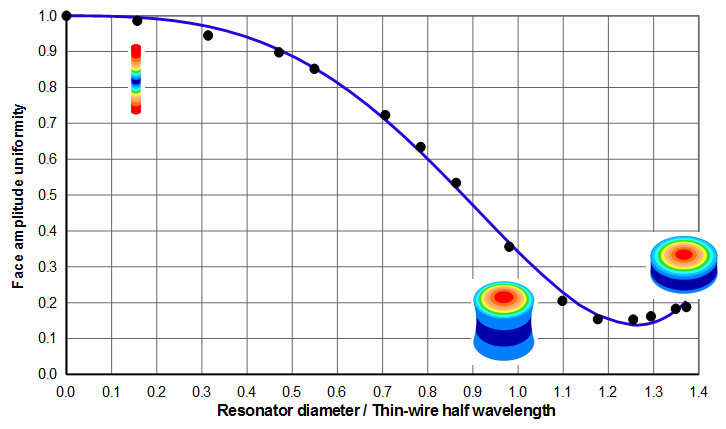

Figures 9 and 10 shows the face amplitude uniformities. (See Uniformity calculation (basic).) Note that figure 10 is simply a zoomed portion of figure 9 where the horizontal axis is limited to 1.1.

Graph - Face axial amplitudes for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 9. Face axial amplitudes for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)
Graph - Face axial amplitudes for typical acoustic materials, various Poisson's ratios (thin-wire wave speed = 5100 m/sec)
Figure 10. Face axial amplitudes for typical acoustic materials
(\( c_{tw} \) = 5100 m/sec)

Figure 10 shows that the face amplitude uniformity improves somewhat as Poisson's ratio decreases. The greatest improvement occurs when \( D/\Gamma_{tw} \) is approximately 0.7. Then the uniformity increases from 0.72 to 0.78 (8% improvement) when Poisson's ratio decreases from 0.33 to 0.27.

Curve fit

The polynomial curve fit for the data of figures 9 and 10 for 0.33 Poisson's ratio is —

\begin{align} \label{eq:10718a} U = 1 - 0.0809 \, X^2 - 0.5688 \, X^3 - 0.6565 \, X^4 + 0.6481 \, X^5 \end{align}

where —

\( U \) = face axial amplitude uniformity
\( X \) = cylinder diameter / thin-wire half wavelength
= \( D/\Gamma_{tw} \)

Radial amplitudes

For the following graphs —

  1. The radial amplitudes are relative to the the axial amplitude at the center of the resonator's face.
  2. For reference, the left image of each image pair shows the axial amplitude distribution.
  3. The arrows show the direction of vibration for the associated colors.
  4. The colors are chosen so that red represents the maximum amplitude of each imge pair.
  5. The radial amplitudes are graphed as negative. This simply indicates that the radial amplitudes are out of phase with the axial amplitudes (i.e., when the resonator expands axially the face contracts radially and vice versa).

Node radial amplitudes

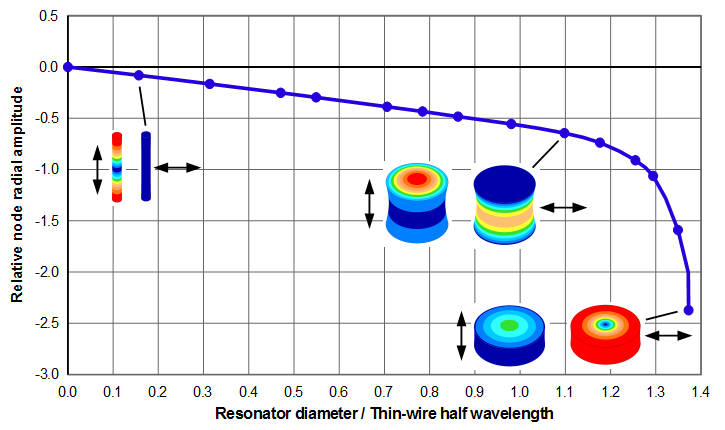

Figure 11 shows the radial amplitudes at the node.

Graph - Node radial amplitudes for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 11. Node radial amplitudes for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

Face radial amplitudes

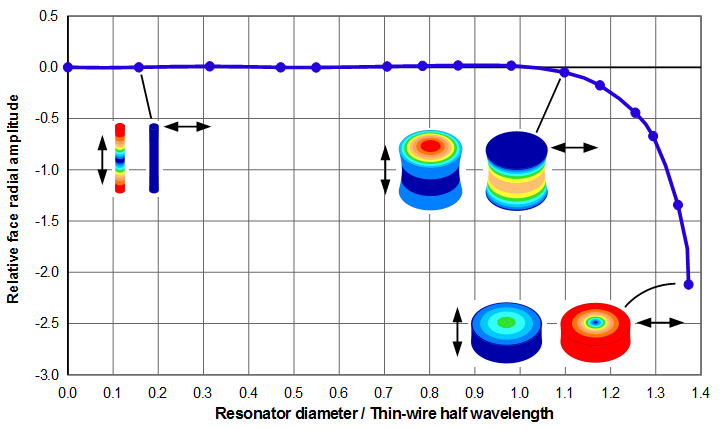

Figure 12 shows the radial amplitudes at the face periphery. The radial amplitudes are essentially zero until the resonator diameter equals the thin-wire half wavelength (\( \Gamma_{tw} \)); thereafter the radial amplitudes increase rapidly. In fact, as the cylinder becomes more disk shaped the face radial amplitudes approach the node radial amplitudes as can be seen from the coloration of the right-most resonator images.

Graph - Face radial amplitudes for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure 12. Face radial amplitudes for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

\( \setSection A \)

Appendix A. Tuned length of a stout cylindrical prismatic resonator
(Rayleigh and Mori approximations)

\( \newtagform{A}{(A}{)} % 1st brace is tagform name. Next 2 brace sets are tagform appearance. \usetagform{A} % Should be same as first brace in newtagform{ } \seteqnumber{1} % Set starting eqn number for the designated tagform \)

For a thin prismatic resonator that vibrates in a longitudinal mode, the half-wavelength for a pressure wave is —

\begin{align} \label{eq:10750a} \Gamma_{tw} = \frac{c_{tw}}{2 \, f} \end{align}

where —

\( \Gamma_{tw} \) = thin-wire half-wavelength
\( c_{tw} \) = longitudinal thin-wire wave speed
\( f \) = frequency

The longitudinal thin-wire wave speed can be determined from the material properties —

\begin{align} \label{eq:10751a} c_{tw} &= \sqrt{\frac{E}{\rho}} \end{align}

where —

\( E \) = modulus of elasticity (Young's modulus)
\( \rho \) = density

As the lateral dimensions of the resonator increase (i.e., the resonator is no longer "thin"), the half-wavelength decreases below that of a thin wire. From a physical standpoint, when the resonator's diameter is larger than an infinitely thin wire, then radial "breathing" occurs due to Poisson's coupling. This imparts additional kinetic energy which would cause the resonator's frequency to drop. In order to maintain the desired frequency the resonator's length must be reduced.

At larger diameters even more breathing occurs and the resonator must tune progressively shorter. At the largest possible diameter the resonator is reduced to a thin flat disk. Then the breathing is simply the fundamental radial resonance of the disk.

Rayleigh approximation

Rayleigh (1) (vol. 1, pp. 251 - 252) first developed an equation that approximately accounts for this phenomena for a prismatic cylinder.

\begin{align} \label{eq:10752a} \Gamma = K_{L_R} \,\, \Gamma_{tw} \end{align}

where —

\( \Gamma \) = half-wavelength at cylinder diameter \( D \)
\( \Gamma_{tw} \) = thin-wire half wavelength
\( K_{L_R} \) = Rayleigh length factor

\begin{align} \label{eq:10753a} K_{L_R} = 1 - \small\frac{1}{8} \normalsize \left(\pi \, \nu \, \frac{D}{\Gamma_{tw}} \right)^2 \end{align}

where —

\( D \) = resonator diameter
\( \nu \) = Poisson's ratio

Note that \( K_{L_R} \) depends on the ratio of the resonator's diameter (\( D \)) to the thin-wire half wavelength (\( \Gamma_{tw} \)). When \( D = 0 \), \( K_{L_R} = 1 \) so that \( \Gamma = \Gamma_{tw}\) (i.e., an exact solution). However, as the resonator diameter increases the Rayleigh approximation first under-estimates and then over-estimates the tuned length (figures A1 and A2 for a typical acoustic material).

Mori approximation

Mori (1) improved on Rayleigh's effort by developing an equation that is correct both for a thin wire and, at large diameters, for a radially vibrating disk. The results at intermediate diameters are approximated by a method called "apparent elasticity".

\begin{align} \label{eq:10754a} \Gamma = K_{L_M} \,\, \Gamma_{tw} \end{align}

where —

\( \Gamma \) = half-wavelength at cylinder diameter \( D \)
\( \Gamma_{tw} \) = thin-wire half wavelength
\( K_{L_M} \) = Mori length factor

\begin{align} \label{eq:10755a} K_{L_M} = \left[ \frac{1 - B_1 \, \psi}{1 - B_2 \, \psi} \right]^{1/2} \end{align}

where —

\( B_1 \) = \( 1 - \nu^2 \)
\( B_2 \) = \( 1 - 3 \, \nu^2 - 2 \, \nu^3 \)
\( \nu \) = Poisson's ratio
\( \psi \)
\( \label{eq:99998a} \displaystyle{ = \left[ \frac{ \large\frac{\pi}{2} \left(\large\frac{D}{\Gamma_{tw}}\right)}{\alpha} \right]^{2} } \)
\( D \) = resonator diameter
\( \alpha \) \( \approx 1.84 + 0.68 \, \nu \) [Derks, p. 42, eqn. 5.8]
\( \alpha \) \( \approx 1.85 \left(1 + 0.386 \, \nu - 0.146 \, \nu^2 + 0.115 \, \nu^3 \right) \) [Gladwell (1), p. 345]

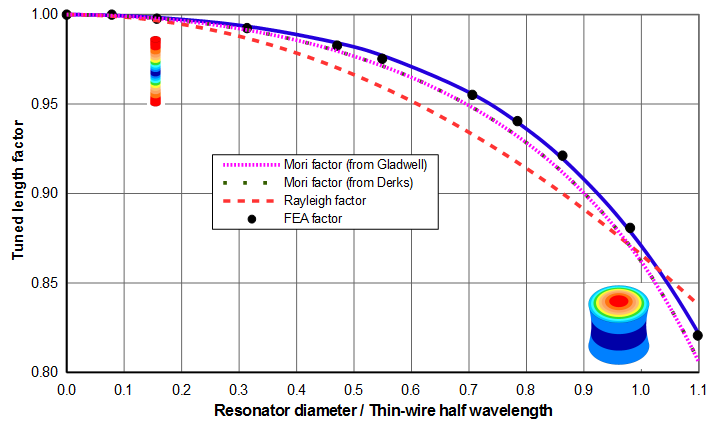

\( K_{L_M} \) is shown in figures A1 and A2 for a typical acoustic material. (Figure A2 is a zoomed version of figure A1.) Note that the Mori approximation consistently under-estimates the tuned length.

Note that \( \alpha \) is approximate. Derks and Gladwell give somewhat different equations. Derks takes his linear equation from a graph by Kleesattel (2), p. 3, figure 1, curve 1. Kleesattel's graph of this curve is not quite linear so Gladwell's approximation may be somewhat better. However, the difference is small — for \( \nu \) = 0.33 (approximately typical for many acoustic materials), Gladwell's equation gives 2.0666 whereas Dirks' equation gives 2.0639. Figures A1 and A2 shows that the results are nearly indistinguishable.

Graph - Tuned length factors (curve fits) for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure A1. Tuned length factors for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)
Graph - Tuned length factors (curve fits zoomed) for typical acoustic material (thin-wire wave speed = 5100 m/sec, Poisson's ratio = 0.33)
Figure A2. Tuned length factors for typical acoustic material
(\( c_{tw} \) = 5100 m/sec, Poisson's ratio = 0.33)

\( \setSection B \)

Appendix B. Tuning rate of a thin prismatic resonator

\( \newtagform{B}{(B}{)} % 1st brace is tagform name. Next 2 brace sets are tagform appearance. \usetagform{B} % Should be same as first brace in newtagform{ } \seteqnumber{1} % Set starting eqn number for the designated tagform \)

For a thin prismatic resonator that vibrates in a longitudinal mode, the fundamental wave equation is —

\begin{align} \label{eq:10760a} c_{tw} &= 2 \, \Gamma_{tw} \, f \end{align}

where —

\( c_{tw} \) = longitudinal thin-wire wave speed
\( \Gamma_{tw} \) = thin-wire half wavelength
\( f \) = frequency of longitudinal wave

Solving for f —

\begin{align} \label{eq:10762a} f &= \frac{c_{tw}}{2 \, \Gamma_{tw} } \\[0.7em]%eqn_interline_spacing &= \small\frac{1}{2} \normalsize \, c_{tw} \, \Gamma_{tw}^{-1} \nonumber \end{align}

Differentiating \( f \) with respect to \( \Gamma_{tw} \) to get the thin-wire tuning rate \( \varphi_{tw} \) —

\begin{align} \label{eq:10763a} \frac{df}{\Gamma_{tw}} = \varphi_{tw} &= -\small\frac{1}{2} \normalsize \, c_{tw} \, \Gamma_{tw}^{-2} \\[0.7em]%eqn_interline_spacing &= -\small\frac{1}{2} \normalsize \, \frac{c_{tw}}{\Gamma_{tw}^2} \nonumber \end{align}

Substituting \( c_{tw} \) from equation \eqref{eq:10760a} into equation \eqref{eq:10763a} —

\begin{align} \label{eq:10764a} \varphi_{tw} &= -\frac{f}{\Gamma_{tw}} \end{align}

If the resonator is \( n \) half waves long then the tuning rate is reduced by \( 1/n \) since each tuning slice is effectively divided among each of the \( n \) half-waves —

\begin{align} \label{eq:10765a} \varphi_{tw} &= -\frac{f}{n \, \Gamma_{tw}} \end{align}


\( \setSection C \)

Appendix C. Energy stored in a thin longitudinally resonant member

\( \newtagform{C}{(C}{)} % 1st brace is tagform name. Next 2 brace sets are tagform appearance. \usetagform{C} % Should be same as first brace in newtagform{ } \seteqnumber{1} % Set starting eqn number for the designated tagform \)

For a longitudinally resonant member whose cross-sectional dimensions are small compared to its half wavelength, the kinetic energy stored in any thin slice \( dx \) is —

\begin{align} \label{eq:10721a} dW &= \small\frac{1}{2} \normalsize \, \dot{u}^2 \, dm \\[0.7em]%eqn_interline_spacing &= \small\frac{1}{2} \normalsize \, \dot{u}^2 \, \left( \rho \, A \, dx \right) \nonumber \end{align}

where —

\( dW \) = stored energy in thin slice
\( \dot{u} \) = velocity of slice
\( dm \) = mass of slice
\( \rho \) = density
\( A \) = area of slice
\( dx \) = thickness of slice

Quarter wave prismatic

For a quarter wave (\( \lambda/4 \)) the kinetic energy can be found by integrating equation \eqref{eq:10721a} over the quarter wave —

\begin{align} \label{eq:10722a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \, \int_{0}^{\lambda/4}{\dot{u}^2 \, \left( \rho \, A \, dx \right) } \end{align}

For a thin prismatic resonator the amplitude distribution (from the antinodal free end) is —

\begin{align} \label{eq:10723a} u &= U_p \cos \left( {\frac{2\pi}{\lambda}} \, x \right) \, \sin \left( 2\pi f \, t \right) \end{align}

The velocity is the rate of change of the amplitude. Thus, differentiating equation \eqref{eq:10723a} with respect to time gives the velocity distribution —

\begin{align} \label{eq:10724a} \dot{u} &= \frac{du}{dt} \\ &= \left( 2\pi f \right) U_p \, \cos \left( {\frac{2\pi}{\lambda}} \, x \right) \, \cos \left( 2\pi f \, t \right) \nonumber \\ &= \dot{U}_p \, \cos \left( {\frac{2\pi}{\lambda}} \, x \right) \, \cos \left( 2\pi f \, t \right) \nonumber \end{align}

Substituting equation \eqref{eq:10724a} into equation \eqref{eq:10722a} and ignoring the time varying component (to get the maximum energy during the cycle)  —

\begin{align} \label{eq:10725a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \, \int_{0}^{\lambda/4}{\left[ \dot{U}_p \cos \left( {\frac{2\pi}{\lambda}} \, x \right) \right]^2 \, \left( \rho \, A \, dx \right) } \end{align}

For a prismatic resonator the area \( A \) is constant. Also, neither the peak amplitude \( U_p \) nor the frequency \( f \) depend on \( x \). Assume that the density \( \rho \) does not vary with \( x \). Then all of these can be taken outside the integral —

\begin{align} \label{eq:10726a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \left( \rho \, A\right)\, \dot{U_p}^2 \int_{0}^{\lambda/4}{\left[ \cos \left( {\frac{2\pi}{\lambda}} \, x \right) \right]^2 \, dx } \end{align}

Integrating yields —

\begin{align} \label{eq:10727a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \left( \rho \, A\right)\, \dot{U_p}^2 {\left[ \frac{x}{2} + \small\frac{1}{4} \normalsize \, \sin \left( {\frac{4\pi }{\lambda}} \, x \right) \right]}_0 ^{\lambda/4} \end{align}

When equation \eqref{eq:10727a} is evaluated for \( x \) between the limits of 0 and \( {\lambda}/4 \), the sin term is 0 at both limits and so drops out. Then equation \eqref{eq:10727a} is —

\begin{align} \label{eq:10728a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \left( \rho \, A\right)\, \dot{U_p}^2 {\left[ \frac{x}{2} \right]}_0 ^{\lambda/4} \\[0.7em]%eqn_interline_spacing &= \small\frac{1}{2} \normalsize \left( \rho \, A \right)\, \dot{U_p}^2 {\left[ \frac{\lambda}{8} \right]} \nonumber \\[0.7em]%eqn_interline_spacing &= \small\frac{1}{2} \normalsize \left[ \small\frac{1}{2} \normalsize \left( \rho \, A \, \frac{\lambda}{4} \right) \right] \, \dot{U_p}^2 \nonumber \end{align}

The factor in ( ) is just the total mass of the quarter wave section (i.e., \( m_{\lambda/4} \)) so equation \eqref{eq:10728a} can be written as —

\begin{align} \label{eq:10729a} W_{\lambda/4} &= \small\frac{1}{2} \normalsize \left( \frac{m_{\lambda/4}}{2} \right) \, \dot{U_p}^2 \\[0.7em]%eqn_interline_spacing &= \small\frac{1}{2} \normalsize \left( \frac{m_{\lambda/4}}{2} \right) \, \big[ \left( 2\pi f \right) \, U_p \big]^2 \nonumber \end{align}

Thus, the total quarter-wave energy that occurs in a naturally vibrating prismatic member is the same as if 1/2 of the total quarter-wave mass had been concentrated at the antinode. Of course, both configurations should have the same peak velocity \( \dot{U}_p \), corresponding to peak amplitude \( U_p \).

Note that equation \eqref{eq:10729a} could have also been derived from the strain (potential) energy distribution, since at resonance the maximum strain energy equals the maximum kinetic energy.

Half wave prismatic resonator

A half wave (\( \lambda/2 \)) prismatic has twice the mass of a quarter wave prismatic. Therefore it has twice the stored energy of equation \eqref{eq:10729a}—

\begin{align} \label{eq:10730a} W_{\lambda/2} &= \left( \frac{m_{\lambda/2}}{2} \right) \, \dot{U_p}^2 \\[0.7em]%eqn_interline_spacing &= \left( \frac{m_{\lambda/2}}{2} \right) \, \left[ \left( 2\pi f \right) \, U_p \right]^2 \nonumber \end{align}

Half wave stepped resonator

A half wave resonator with a sharp step exactly at the node can be considered simply as two joined quarter wave resonators — i.e., a quarter wave input section joined to a quarter wave output section. Then from equation \eqref{eq:10729a}—

\begin{align} _{step}W_{\lambda/2} &= \, _{i}W_{\lambda/4} + \, _{o}W_{\lambda/4} \nonumber \\[0.7em]%eqn_interline_spacing &= \left[ \small\frac{1}{2} \normalsize \left( \frac{_{i}m_{\lambda/4}}{2} \right) \, _{i}\dot{U}^2 \right] + \left[ \small\frac{1}{2} \normalsize \left( \frac{_{o}m_{\lambda/4}}{2} \right) \, _{o}\dot{U}^2 \right] \nonumber \\[0.7em]%eqn_interline_spacing \label{eq:10731a} &= \small\frac{1}{2} \normalsize \left\{ \left[ \left( \frac{_{i}m_{\lambda/4}}{_{o}m_{\lambda/4}} \right) \, \left( {\frac{_{i}\dot{U}}{_{o}\dot{U}}} \right)^2 \right] + 1 \right\} \left( \frac{_{o}m_{\lambda/4}}{2} \right) \, _{o}\dot{U}^2 \end{align}

where —

prefix \( i \) = input quarter wave
prefix \( o \) = output quarter wave

A resonator's gain \( G \) is defined as the ratio of output velocity to input velocity (also the ratio of corresponding amplitudes) —

\begin{align} \label{eq:10732a} G = \frac{_{o}\dot{U}}{_{i}\dot{U}} \end{align}

Also, for a resonator with a sharp step at the node, the theoretical gain is the ratio of the mass of the input quarter wave to that of the output quarter wave —

\begin{align} \label{eq:10733a} G = \frac{_{i}m_{\lambda/4}}{_{o}m_{\lambda/4}} \end{align}

Substituting equations \eqref{eq:10732a} and \eqref{eq:10733a} into equation \eqref{eq:10731a} —

\begin{align} W_{\lambda/2}|_{stepped} &= \small\frac{1}{2} \normalsize \left\{ \left[ G \, \left( \frac{1}{G} \right)^2 \right] + 1 \right\} \left( \frac{_{o}m_{\lambda/4}}{2} \right) \, _{o}\dot{U}^2 \nonumber \\[0.7em]%eqn_interline_spacing \label{eq:10735a} &= \small\frac{1}{2} \normalsize \left( \frac{1}{G} + 1 \right) \left( \frac{_{o}m_{\lambda/4}}{2} \right) \, _{o}\dot{U}^2 \end{align}

Comparison to prismatic resonator

Comparing the half-wave stepped resonator of equation \eqref{eq:10735a} to the half-wave prismatic resonator of equation \eqref{eq:10730a} where both are specified to have the same output mass (i.e., the same output cross-sectional area) and the same output velocity —

\begin{align} \label{eq:10736a} \frac{W_{\lambda/2}|_{stepped}}{W_{\lambda/2}|_{prismatic}} = \small\frac{1}{2} \normalsize \left( \frac{1}{G} + 1 \right) \end{align}

Note that when the step disappears (i.e., the input and output quarter-wave sections have the same cross-sectional area so that the gain is just 1.0), the stored energy of the half-wave "stepped" resonator (which is then no longer stepped) is just equal to the stored energy of the half-wave prismatic resonator, as required.

When the resonator has gain greater than 1.0 then equation \eqref{eq:10736a} shows that the stored energy of the stepped resonator is less than the stored energy of the prismatic resonator. This is dispite the fact that the input section of the stepped resonator must be larger than that of the prismatic resonator in order to provide gain (assuming, again, that both resonators have the same output mass and velocities). It might initially seem odd that a stepped resonator whose input section is more massive than the prismatic resonator would have lower stored energy. However, this occurs because the kinetic energy depends not only on the mass but, also, on the square of the velocity —

\begin{align} \label{eq:10737a} W = \small\frac{1}{2} \normalsize m \, \dot{U}^2 \end{align}

Thus, although the input section is more massive its velocity is correspondingly lower (to provide the required gain) so that the net kinetic energy is lower.

The gain of equation \eqref{eq:10736a} is the highest that is theoretically possible. Practical resonators will have lower gain, either because the step is not sharp (in order to reduce the associated stess) or because the step is not located at the node. Thus, equation \eqref{eq:10736a} gives the highest possible energy reduction for a stepped resonator. Note that, even in the limit as the gain becomes infinite, the energy of the stepped resonator is reduced to only half of that of the prismatic resonator.
