Impedance analyzer

An instrument that measures electrical impedance over a specified frequency range. The impedance may include real and imaginary parts as well as the phase angle.

Agilent 4294a impedance analyzer

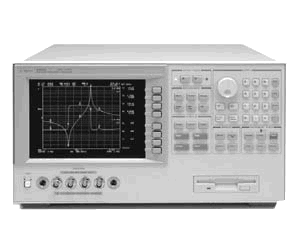

Figure 1. Agilent 4294a impedance analyzer
Figure 2. Example impedance plot with phase
